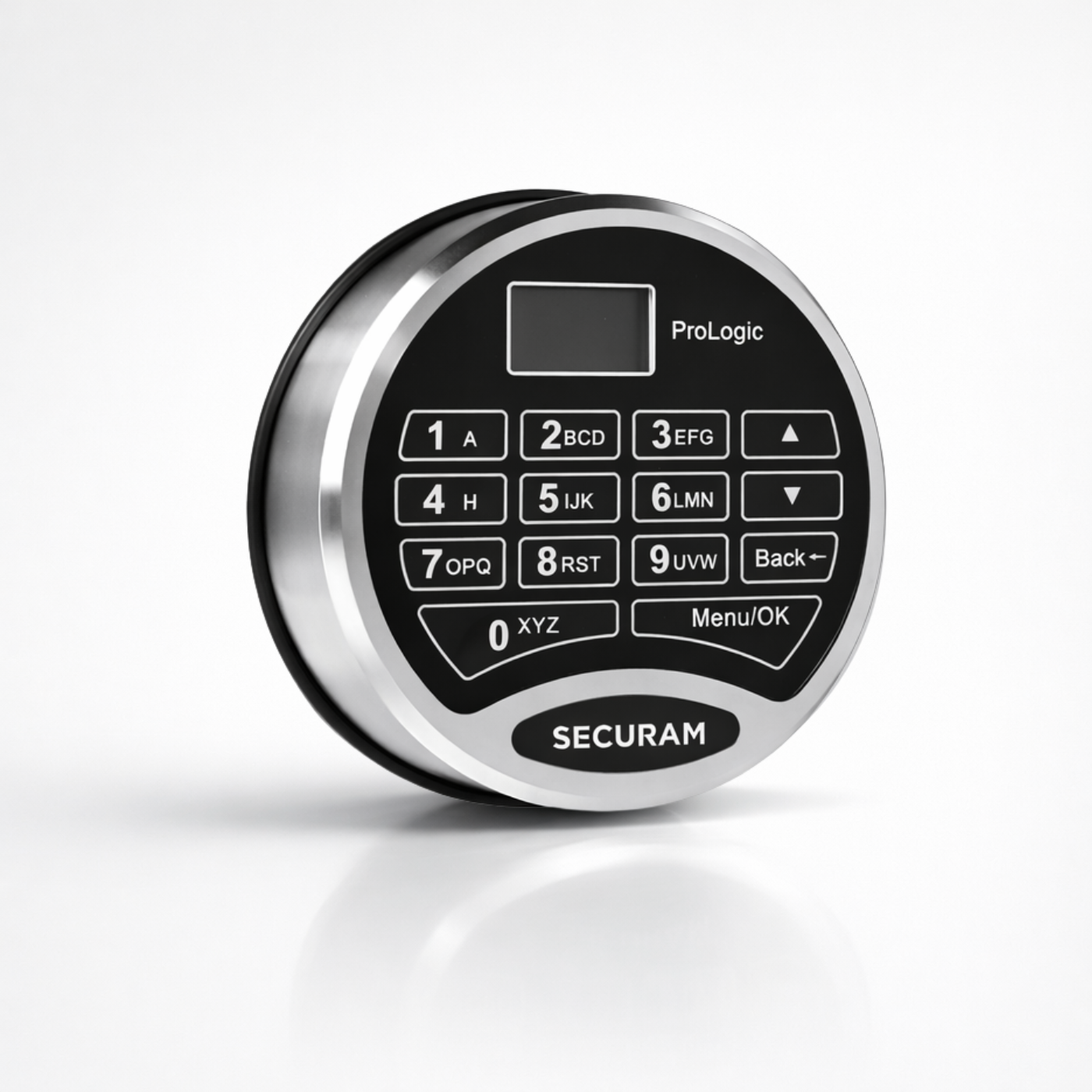

ProLogic R22 - One Time Code
Secure access for commercial applications
The ProLogic R22 is engineered for ATM, cash handling, and vault applications where secure, traceable access is non-negotiable.
Built around SECURAM’s proprietary One-Time Code (OTC) system, the R22 delivers encrypted code generation and software-based verification to ensure every entry is authorized, recorded, and accountable.
ProLogic R22 - One Time Code
Sale price$676.05
ProLogic R22
Key Features
- One-Time Code (OTC) access with software-based decryption
- Up to 60 users with Manager, User, and OTC roles
- Super Code for advanced programming and control
- OLED display for clear setup and operation
- Stores 200 time-stamped audit events
- Time delay (0–99 min) and time window (1–15 min)
- Single or dual control operation
- Penalty lockout after four incorrect attempts
- Supports up to four locks
- Stainless steel entrypad housing
- Standard retrofit footprint
One-Time Code Workflow
The ProLogic R22 uses a structured, encrypted access process:
- Assigned Code Entered
- Random OTC Generated
- OTC Decrypted via R22 Software
- Valid 6-Digit Access Code Generated
This layered process ensures secure, traceable technician access in high-risk commercial environments.
User Capacity & Control
- Up to 60 total users
- 2 Managers
- 18 Users
- 40 One-Time Code users
- Super Code for full system control
- Enable or disable user codes
- Single or dual control modes
Security & Oversight
- Stores 200 date- and time-stamped events
- Penalty lockout after four incorrect attempts
- Time delay override and recovery codes supported
- Multi-lock support for expanded control
Technical Specifications
- Code Length: 6 digits
- Power Supply: (1) 9V alkaline battery (Duracell)
- Battery Life: Approximately one year
- Standby Current: <50 µA
- Low Battery Voltage: 5.4V ±0.2V
- Operating Humidity: 90% maximum
Compatibility & Part Numbers
- Compatible with SECURAM lock bodies:
SwingBolt – EL-0601
DeadBolt – EL-0701
SpringBolt – EL-0801
- ProLogic R22 Safe Lock: EC-0601A-R22-II-C-CH
- One-Time Code Software Kit
WSK-R22 (includes WA-SK USB adapter) - One-Time Code Software is required to manage the system and is sold separately.
