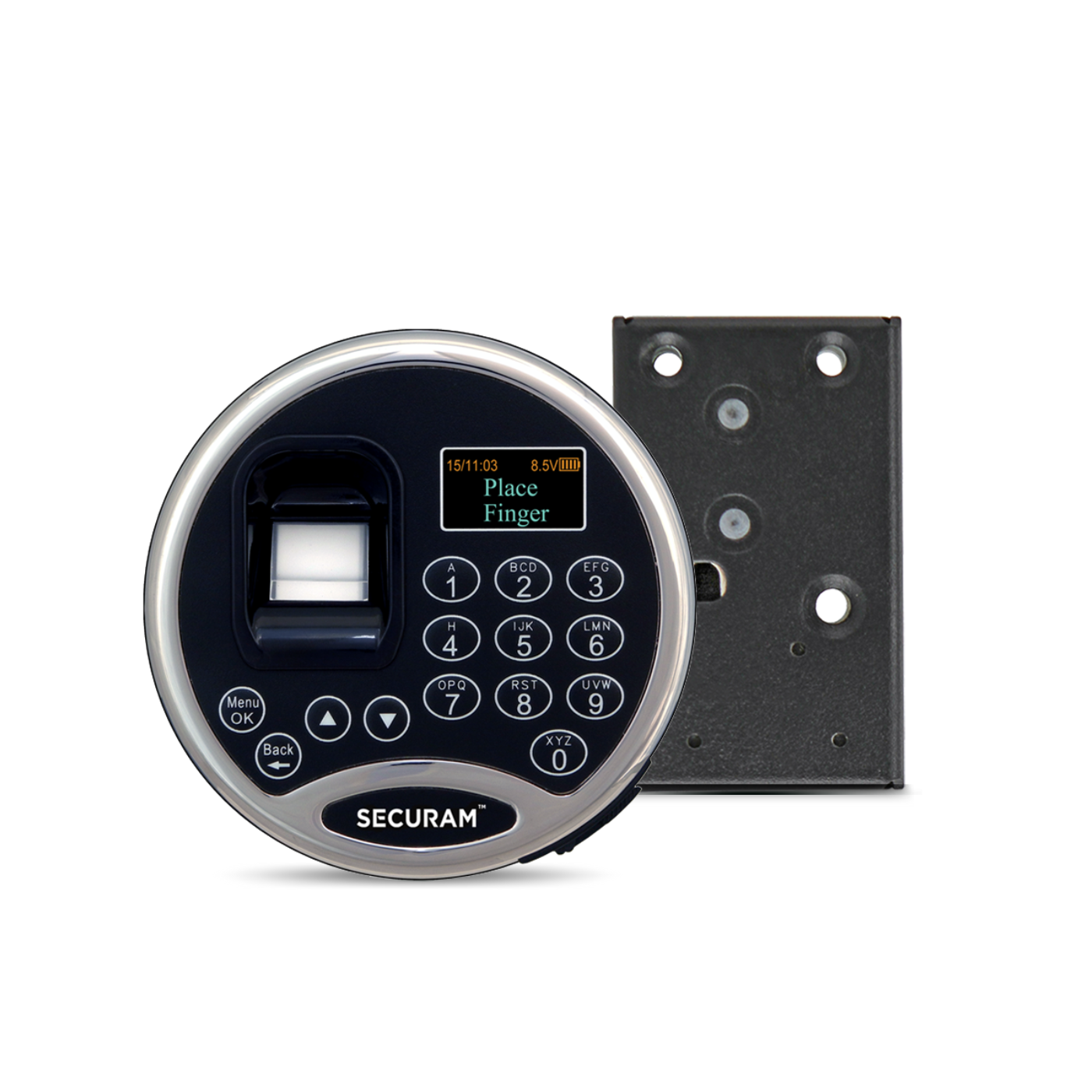

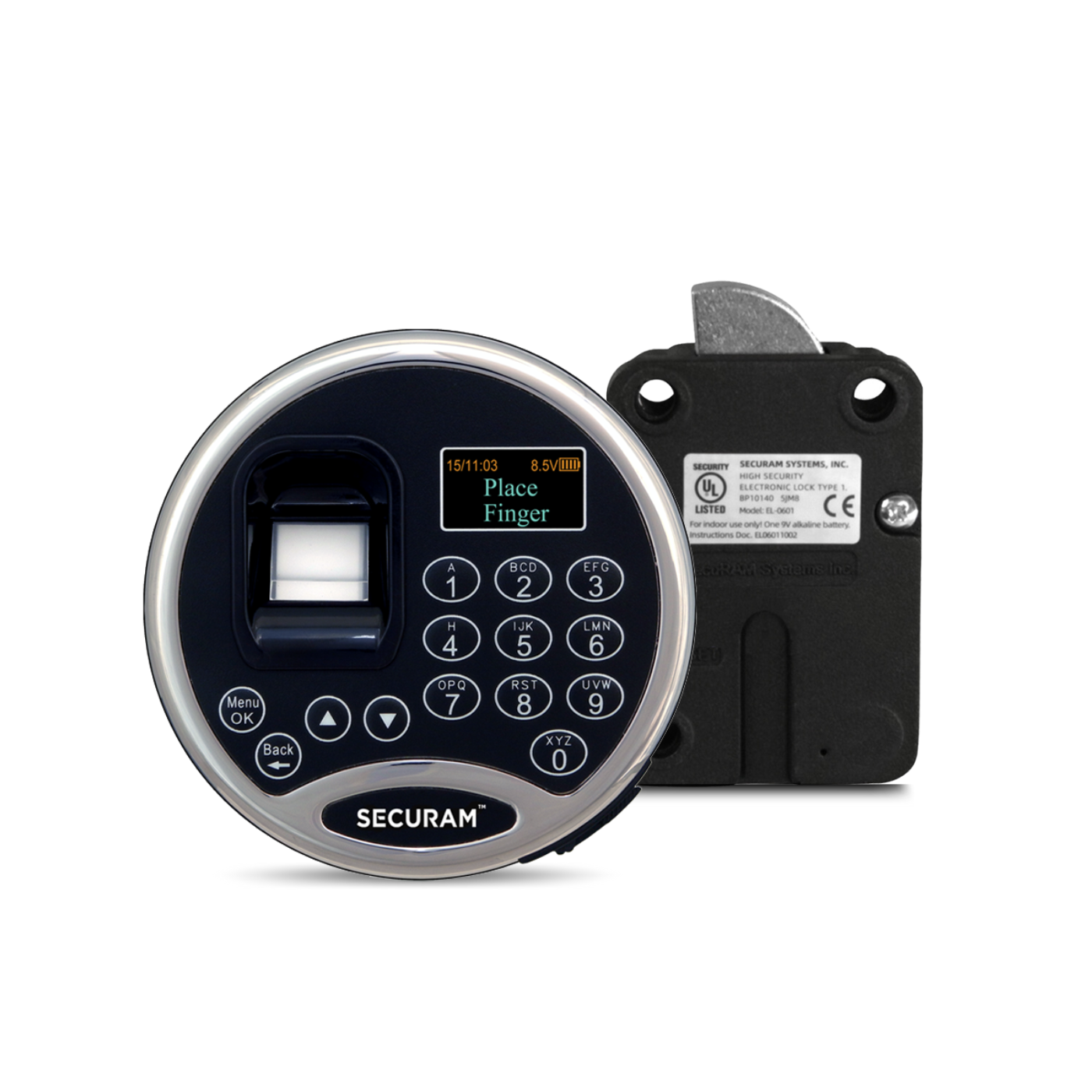

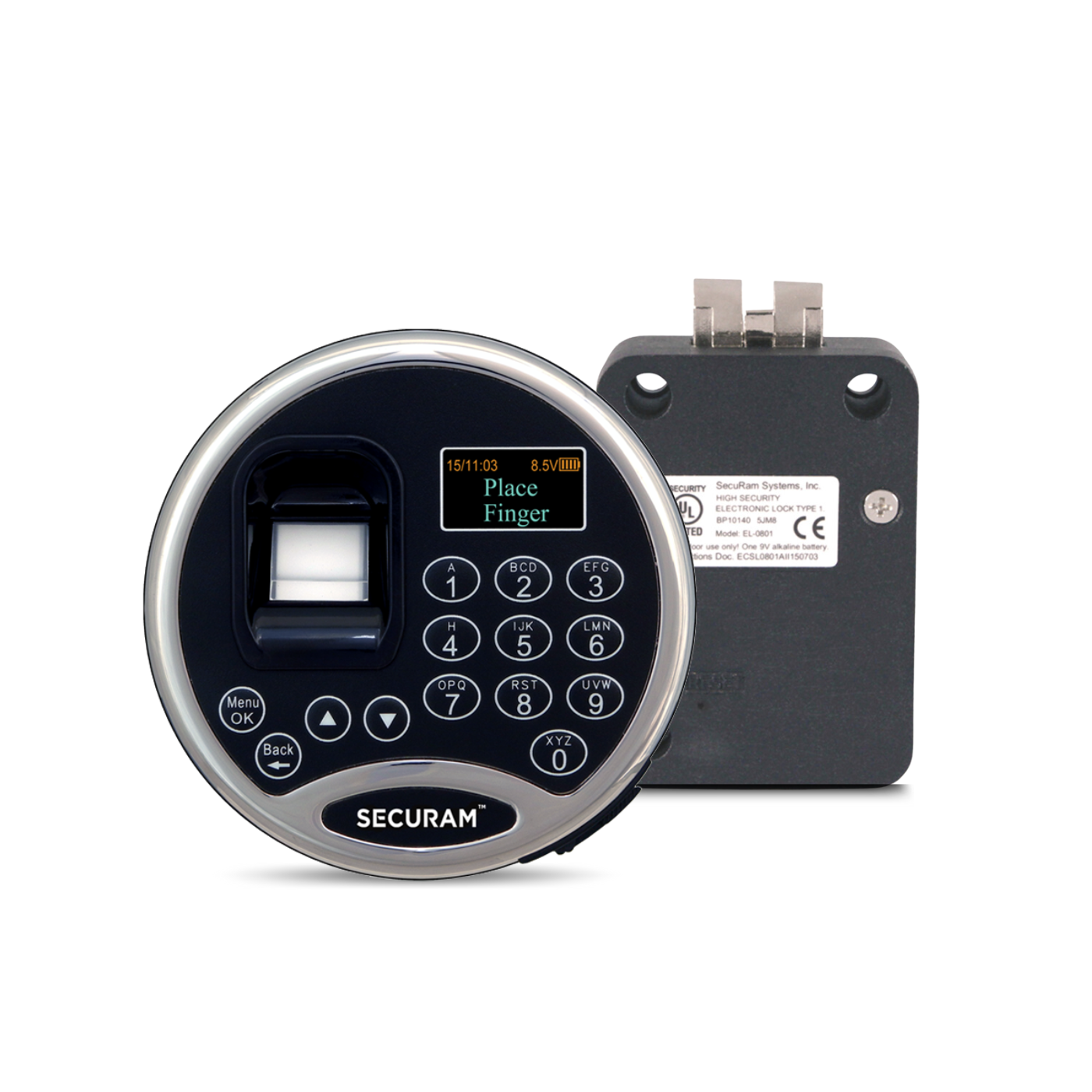

ScanLogic D66 (Discontinued)

This product has been discontinued. For an upgraded alternative, we recommend the new ScanLogic D66 – With Mobile Audit Download.

Features

• Supports 30 fingerprints with our patented One Touch fingerprint verification - 6-digit codes
• 30 Fingerprints & User Codes: 2 Manager Codes, 28 User Codes
• Support hierarchical user management with Super, Manager, Supervisor, and User Fingerprints/Codes
• Super Code programming management and control
• TimeLock and Holiday Scheduling
• Set ID01 to Master to establish hierarchical management
• 1000 event date and time stamped audit trail
• Wireless Audit Download (sold separately)
• Programmable Time Delay 0-99 minutes; 0-15 minute Time Window
• Time Delay Override Codes – selectable
• Duress Time Delay allows you to program the Time Delay value when under duress operation
• Recovery Code
• Single or Dual Modes
• Enable / Disable User Codes
• Can Control up to 4 locks and authorize user access for each lock
• Standard footprint and mounting pattern, easy retrofit for any mechanical or electronic safe lock
• SureLock Battery Management and AC power
• Can be paired with any SECURAM Lock: SwingBolt, DeadBolt, SpringBolt, and StrikeBolt
• Finishes available: Chrome

PART # FPC-0601A-D66-C-II-CH

Important Note: It is strongly recommended to use a lock body that has an internal status sensor with all audit locks (EL-0601-S, EL-0701, EL-0801). The resulting audit trail will then report "lock open time" as well as "lock close time".

The EL-0601 does not have a status sensor and therefore the door close time will be reported at the same time as the door open time.
