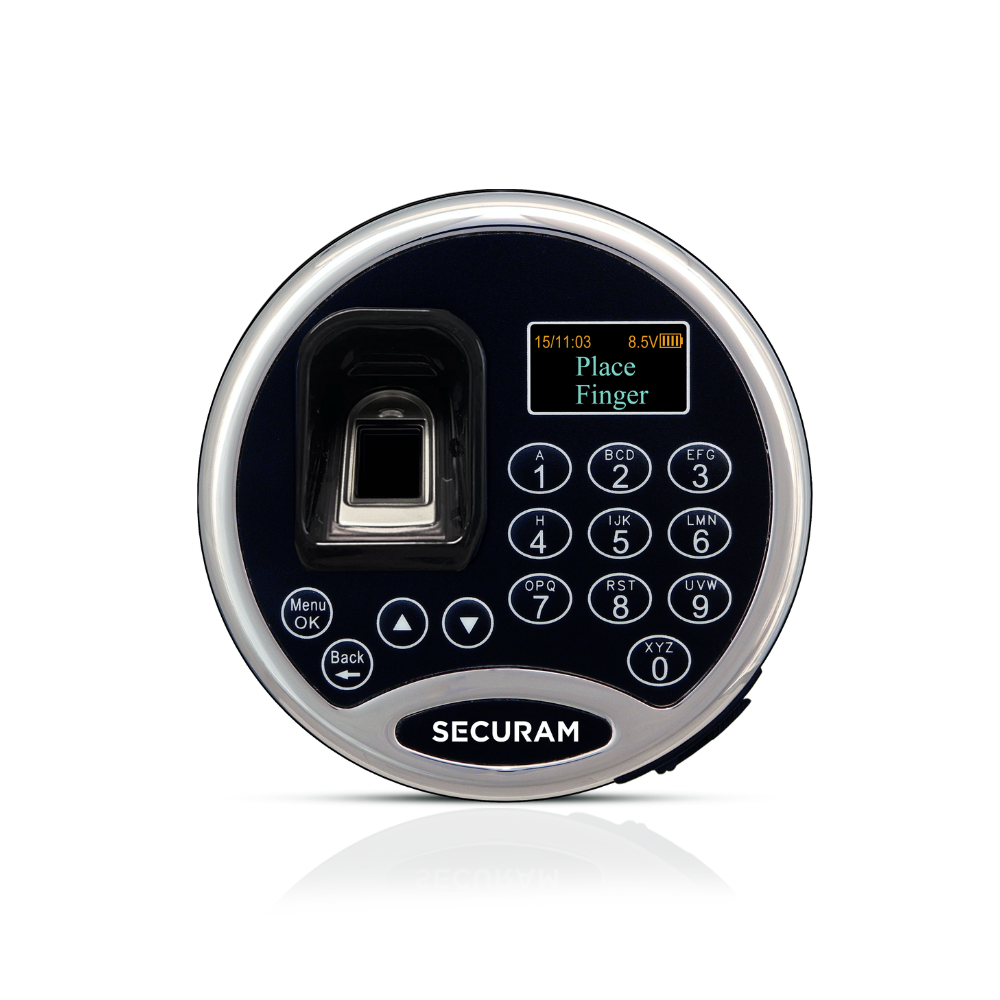

ScanLogic D22 (2025 Model)

The ScanLogic D22 (2025 Model) features durable stainless steel construction and advanced security for commercial use. It offers an RF fingerprint reader, a 500-event audit trail, multiple security levels, and supports up to 30 user credentials, with an OLED screen for effortless navigation.

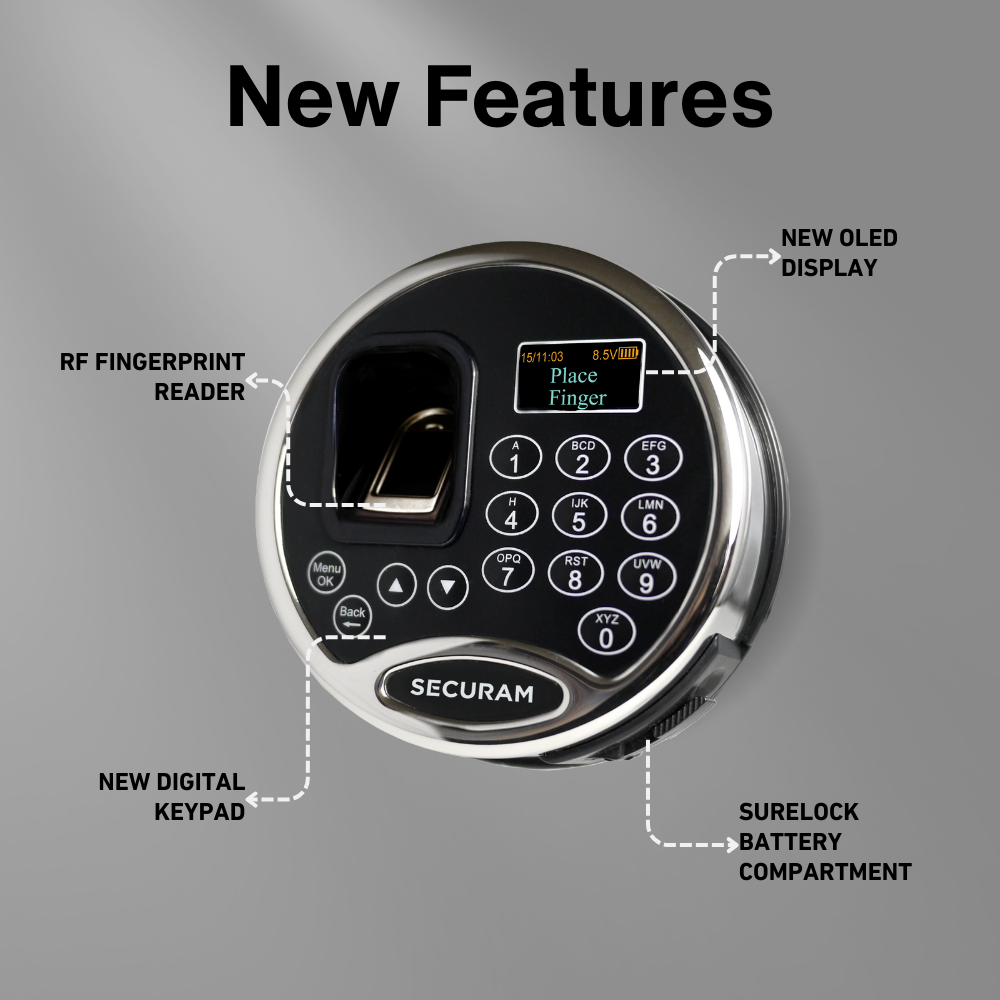

Key Features:

• OLED Screen – Clear, user-friendly programming interface.
• Registration Capacity – Supports up to 30 fingerprints & user codes.
• Super Code – Enables full programming and system management.
• Customizable Code Length – Choose between 8-digit and 6-digit (Non-UL Mode) options.
• 500-Event Audit Trail – Logs events with detailed time stamps.
• Advanced Security Levels – Supports 3 access tiers for customized user control.
• Programmable Time Delay – Adjustable 0-99 minute delay with a 1-15 minute time window.
• Time Delay Override – Allows authorized users to bypass delays when needed.
• Master Function – Enables ID01 as a Master for streamlined user management.
• Duress Function – Activates a duress fingerprint/code for discreet emergency security.
• Single or Dual Control Modes – Flexible access control for added security.
• User Code Management – Easily enable/disable user codes as needed.
• Recovery Code – Restores the system to factory settings when required.
• Lock Control – Manage up to 4 locks from one system.
• Battery Management – SureLock with AC power backup for uninterrupted performance.

For users looking for ScanLogic Audit or the previous ScanLogic D series entrypad functionality, the new ScanLogic D22 (2025 Model) provides a comparable alternative with additional benefits.

Important Note:

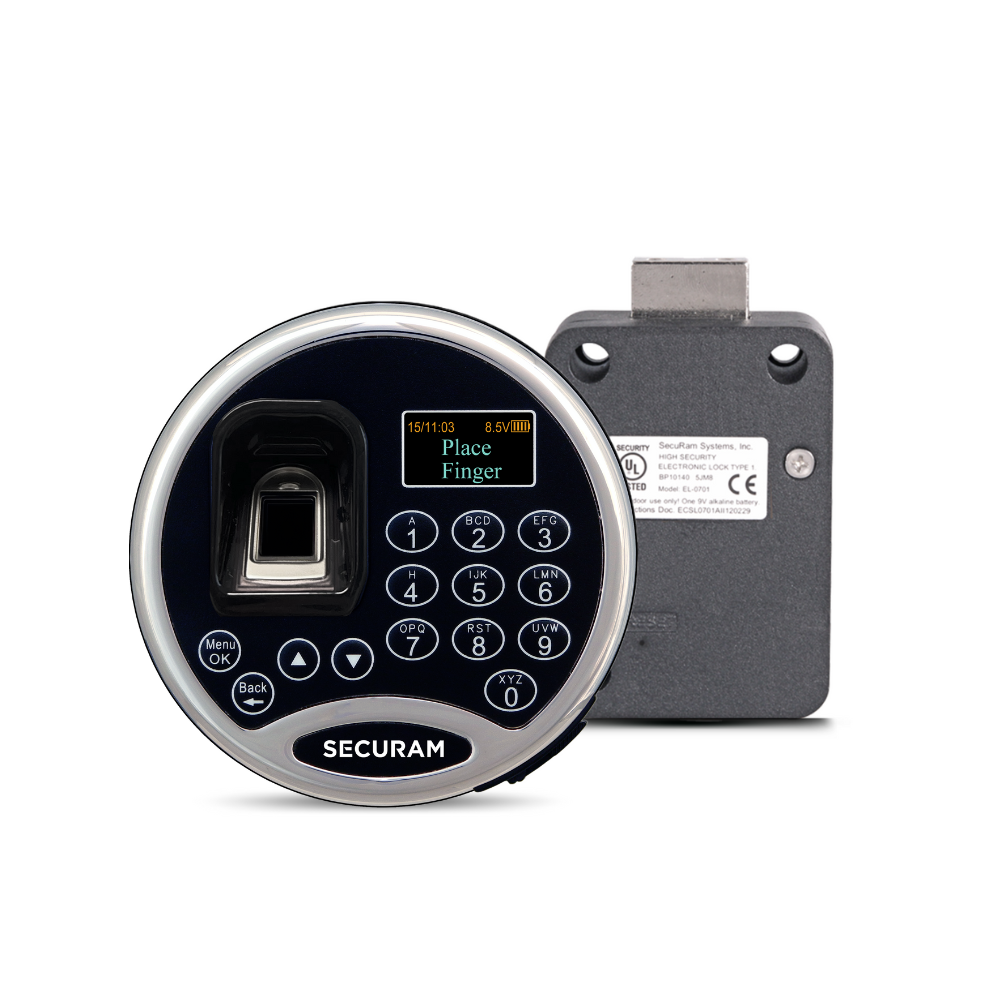

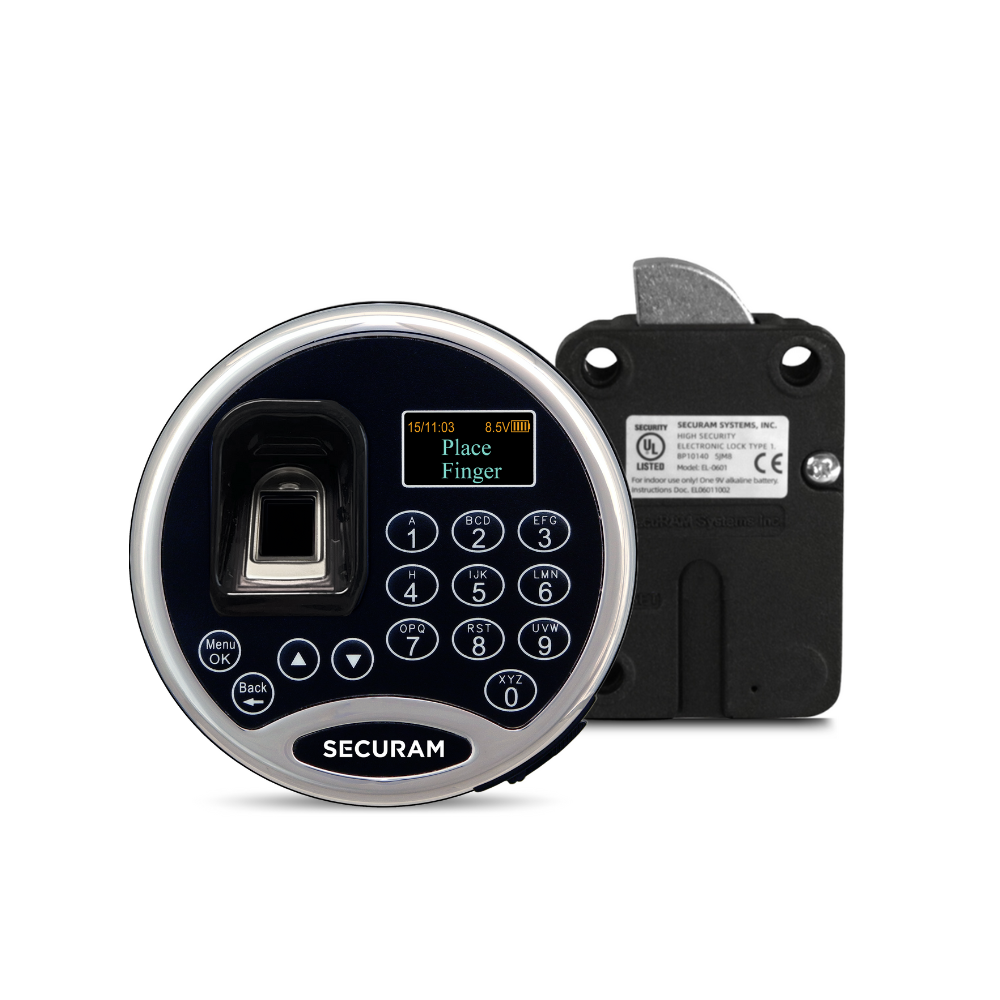

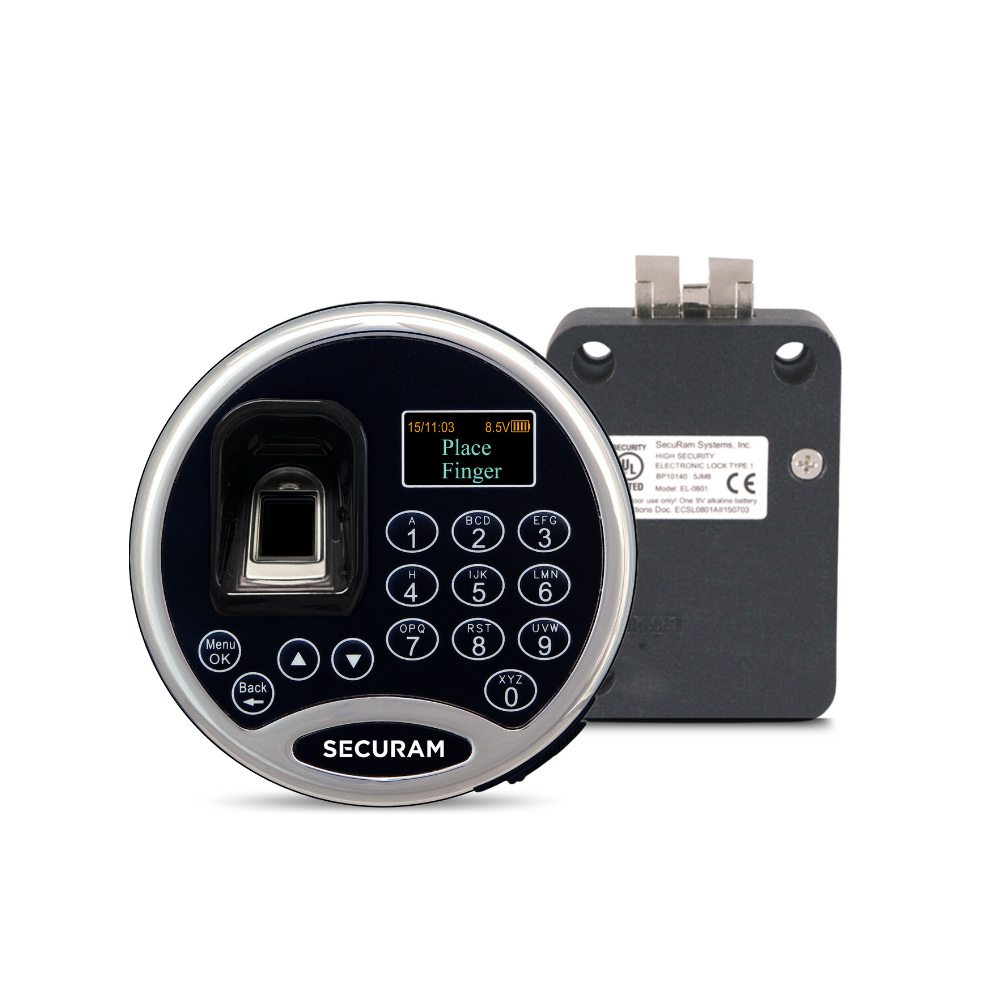

For optimal audit trail functionality, it is strongly recommended to use a lock body with an internal status sensor when pairing with audit locks (EL-0601-S, EL-0701, EL-0801). This ensures the audit trail accurately reports both lock open and lock close times.

⚠️ Please note: The EL-0601 does not have a status sensor—as a result, the audit log will report the door close time at the same time as the door open time.

Part # FPC-2401A-D22-C-II-CH

Data Sheet
