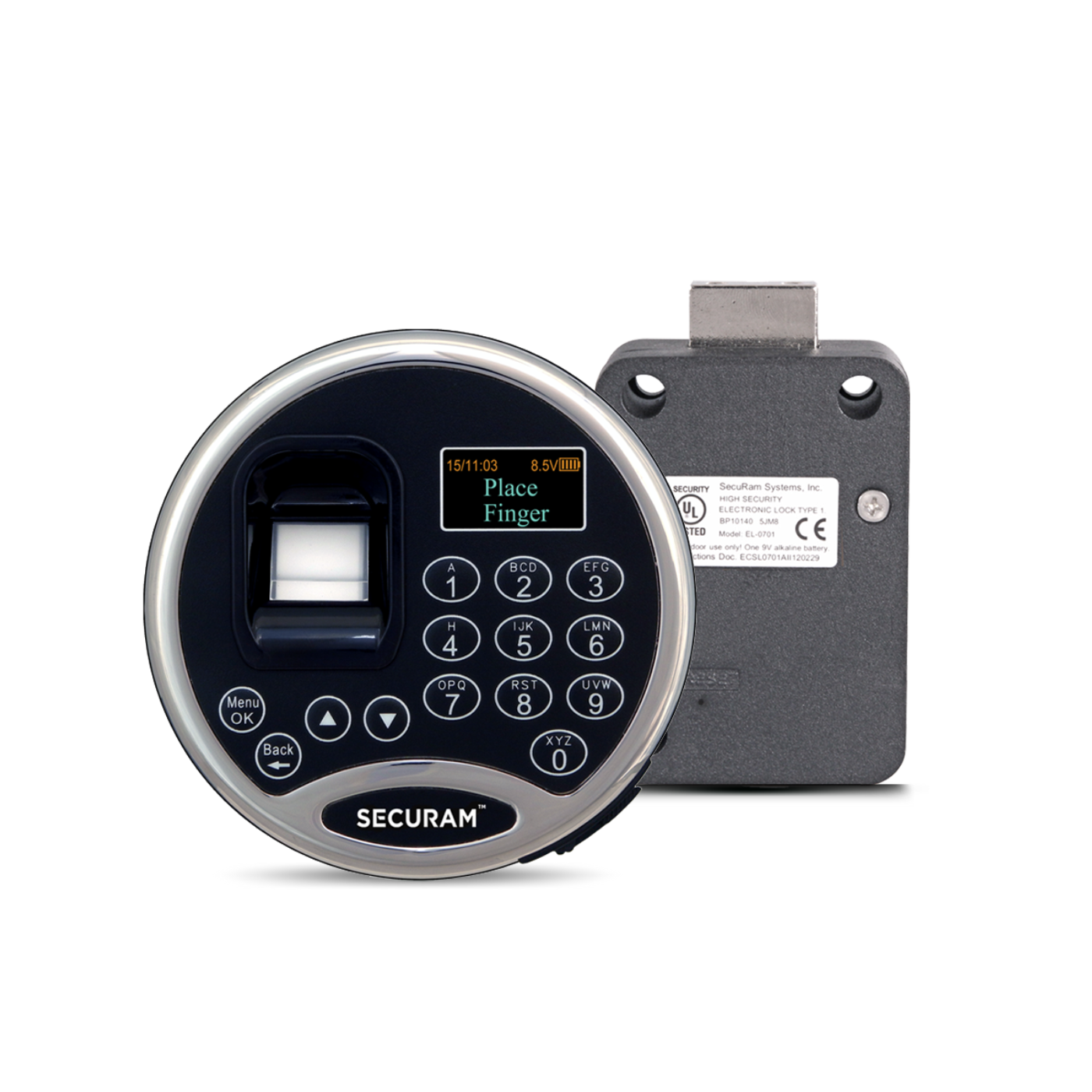

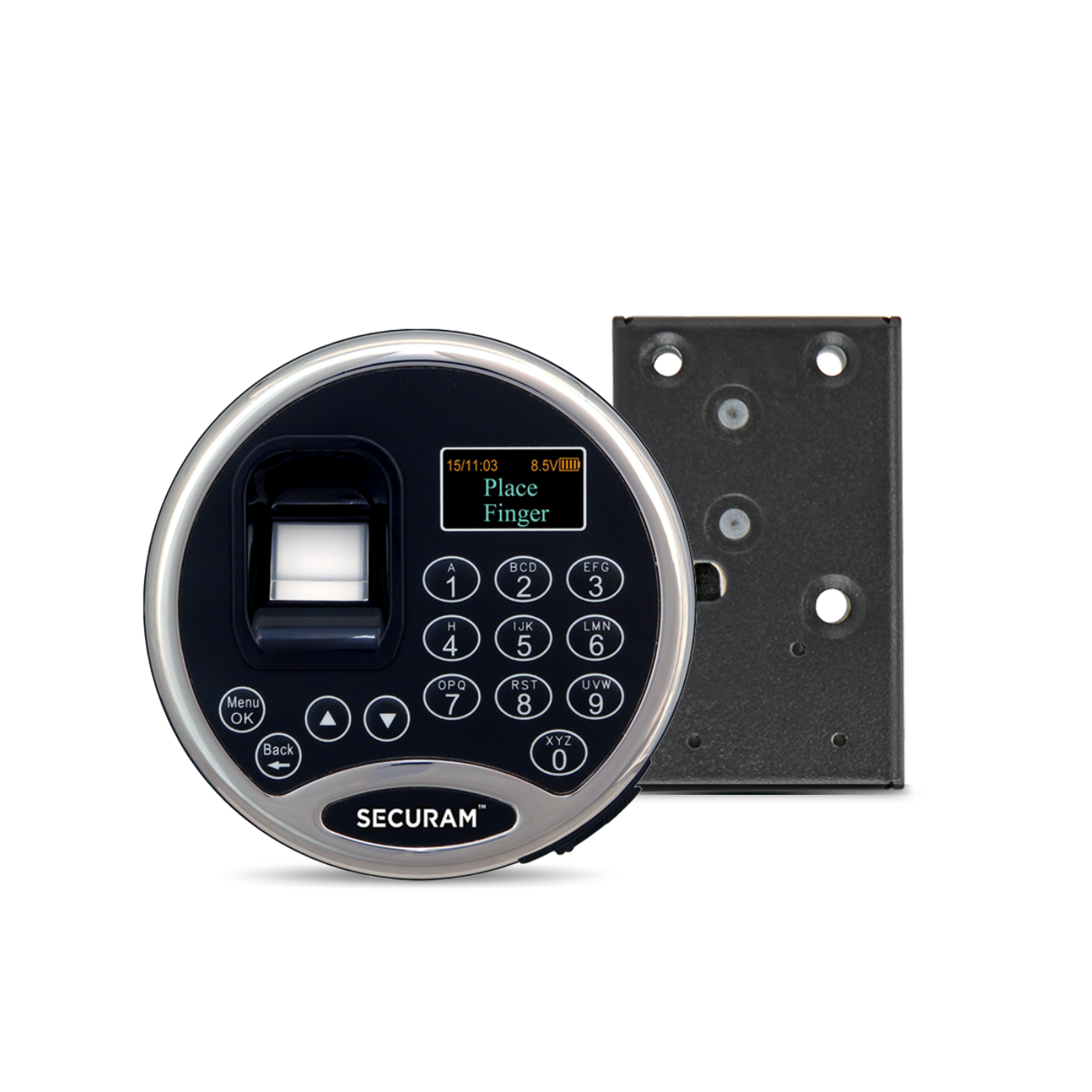

ScanLogic D22

Sale price$1,501.81
Log in as a Wholesale customer here
Lock Type: SwingBolt w/ Status


    • Supports 30 fingerprints with our patented One Touch fingerprint verification – 6 digit codes
    • 30 Fingerprints & User Codes: 2 Manager Codes, 28 User Codes
    • Support hierarchical user management with Super, Manager, Supervisor, and User Fingerprints/Codes
    • Super Code programming management and control
    • 1000 event date and time stamped audit trail
    • Programmable Time Delay 0-99 minutes; 0-15 minute Time Window
    • Time Delay Override Codes – selectable
    • Duress Time Delay allows you to program the Time Delay value when under duress operation
    • Recovery Code
    • Single or Dual Modes
    • Enable / Disable User Codes
    • Can Control up to 4 locks and authorize user access for each lock
    • Standard footprint and mounting pattern, easy retrofit for any mechanical or electronic safe lock
    • SureLock Battery Management and AC power optional
    • Can be paired with any SECURAM Lock: SwingBolt, DeadBolt, SpringBolt, and StrikeBolt
    • Finishes available: Chrome

    PART # FPC-0601A-D22-C-II-CH

    Important Note: It is strongly recommended to use a lock body that has an internal status sensor with all audit locks (EL-0601-S, EL-0701, EL-0801). The resulting audit trail will then report "lock open time" as well as "lock close time".

    The EL-0601 does not have a status sensor and therefore the door close time will be reported at the same time as the door open time.
