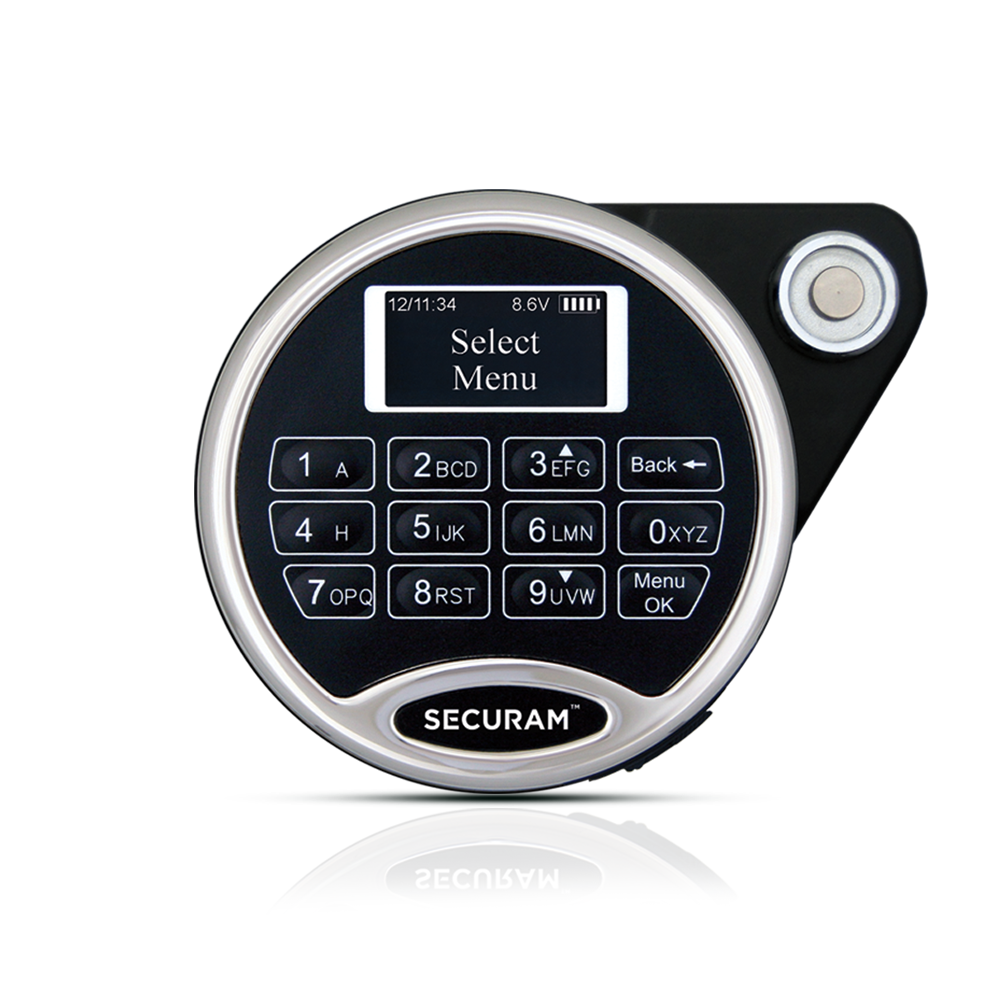

ProLogic E66

Features

• OLED Screen for Easy programming
• 30 User Codes: 2 Manager codes, and 28 user codes
• Super Code for programming management and control

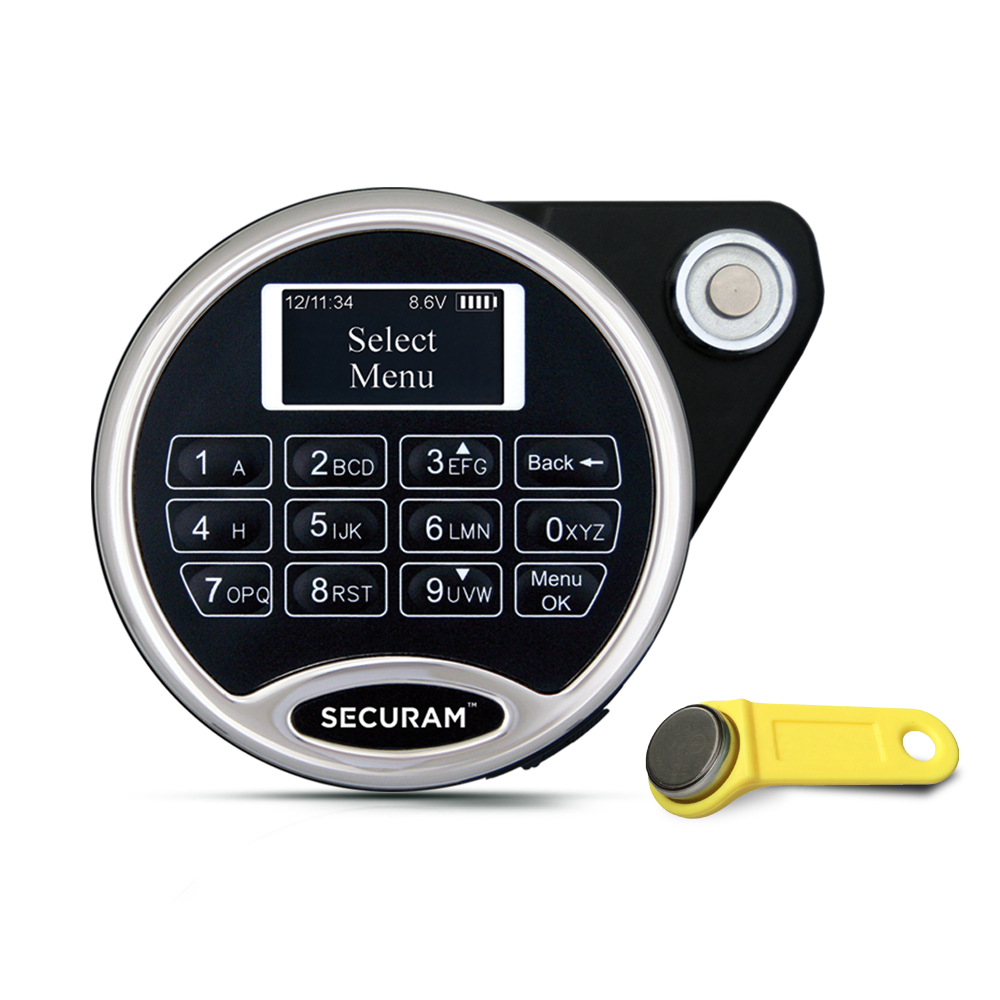

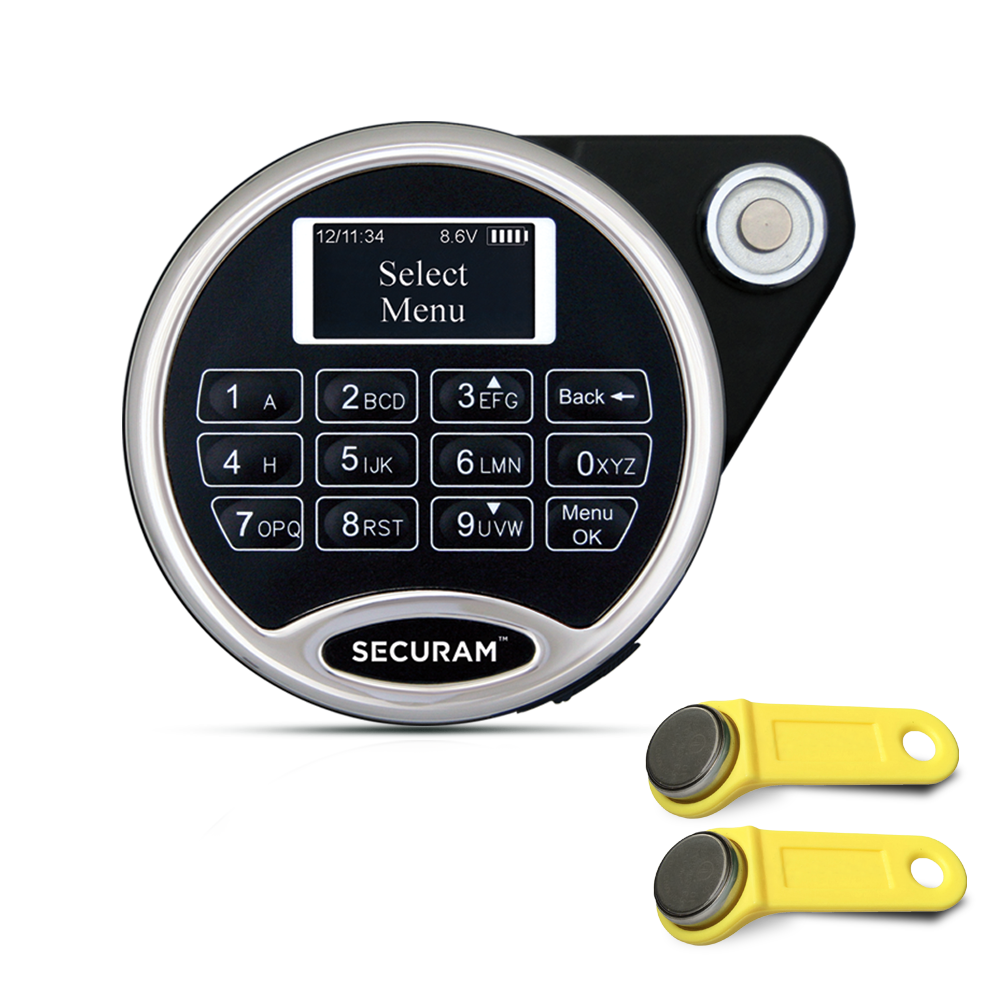

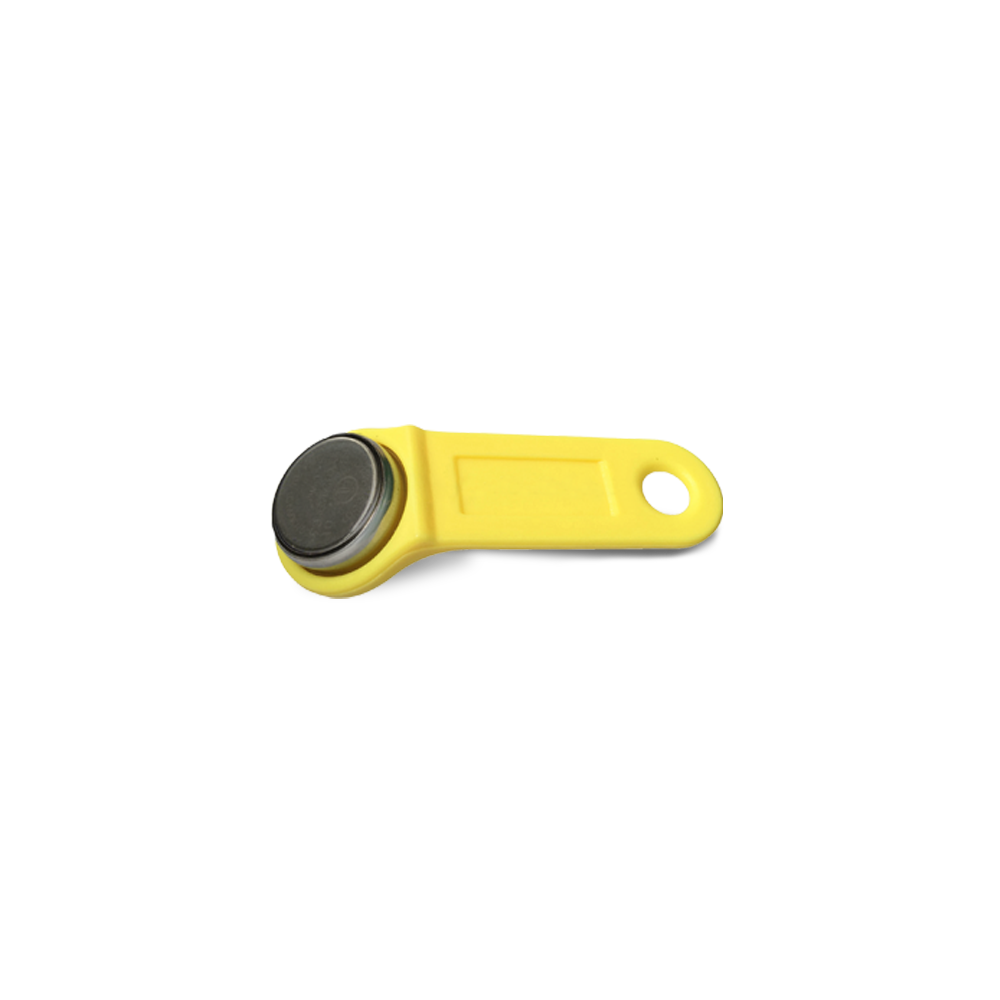

• Dual Credential options using Code and eKey (eKey sold separately)
• 500 event audit trail can be viewed on-screen
• Wireless Audit Download, Part # WSK-AUDIT (sold separately)
• TimeLock, Holiday Scheduling
• Time Delay 0-99min; Time Window 1 -15min
• Time Delay Override Capability for up to 30 Users
• Time Lock Override Capability for up to 30 Users
• A recovery code can be used to reset the controller to the factory default
• Single or Dual Control Modes
• Dual Mode Group – establish Group “A” and “B”: “A” +”B” required to open
• Auto Daylight Savings Time
• EntryPad can control up to 2 locks with a programmable lock sequence
• Supports single user mode and dual user mode
• Can be paired with any SECURAM Lock: SwingBolt, DeadBolt, SpringBolt, and StrikeBolt
• SureLock Battery Management
• AC Power optional
• Finishes available: Chrome

PART # EC-0601A-E66-II-CH

Important Note: It is strongly recommended to use a lock body that has an internal status sensor with all audit locks (EL-0601-S, EL-0701, EL-0801). The resulting audit trail will then report "lock open time" as well as "lock close time".

The EL-0601 does not have a status sensor and therefore the door close time will be reported at the same time as the door open time.
