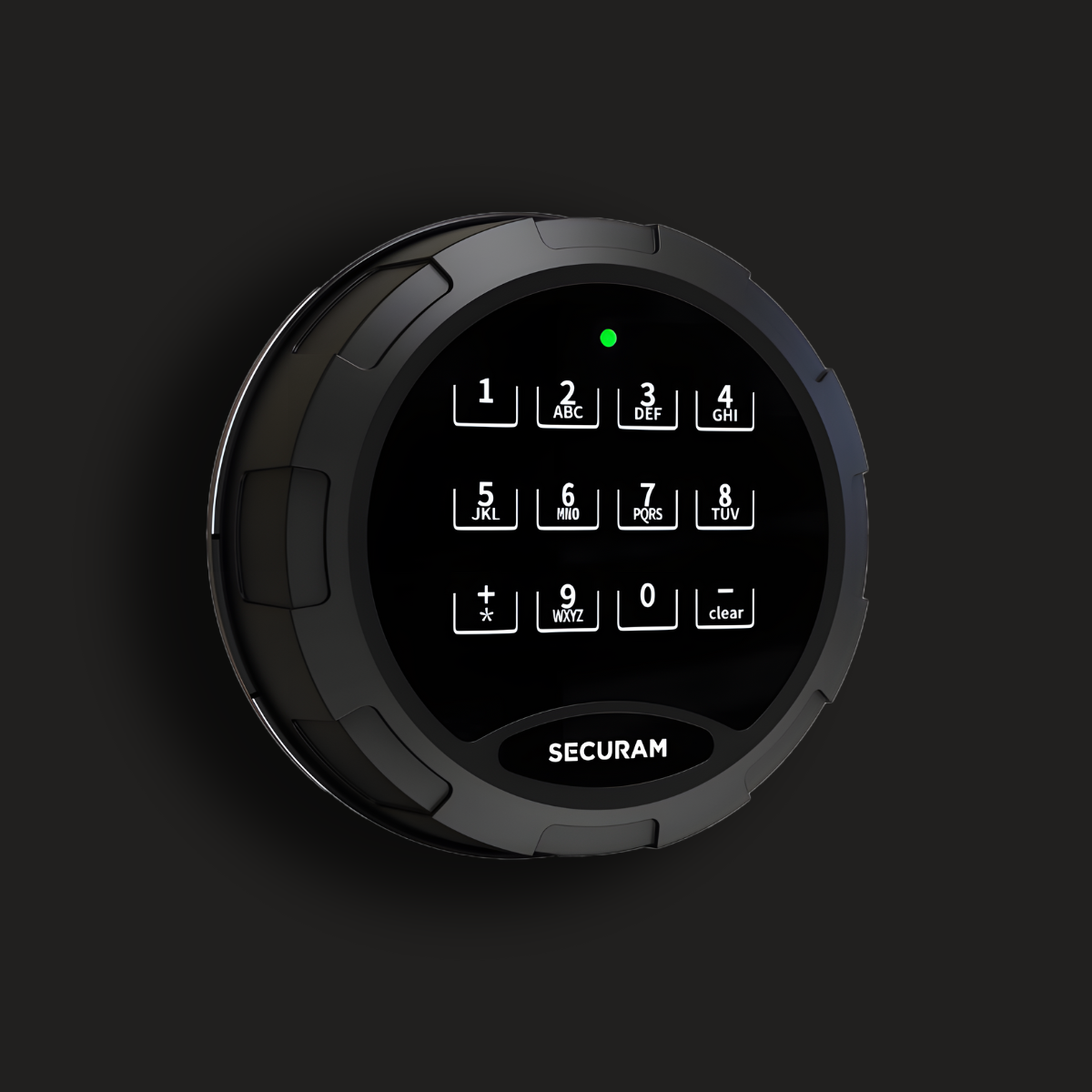

ProLogic L66 PLUS

Features

• 100 codes: 1 Super code, 1 manager code, and 98 user codes
• Super Code for programming management and control
• 500 event audit trail can be viewed on-screen
• Wireless Audit Download to Wireless Link (WSK-Audit)
• TimeLock, Holiday Scheduling
• Time Delay 0-99min; Time Window 1-15min
• Time Delay Override Codes – selectable
• OTC Recovery code can be used to reset the controller to the factory default
• Single or Dual Control Modes
• Dual Mode Group – set some users in Dual Mode
• Auto Daylight Savings Time
• EntryPad can control up to 4 locks with a programmable lock sequence
• Supports single user mode and dual user mode
• Duress mode with programmable shift feature
• Can be paired with any SECURAM Lock: SwingBolt, DeadBolt, SpringBolt, and StrikeBolt
• SureLock Battery Management is standard, and AC Power optional
• Available finishes: Chrome

PART # EC-0601A-OL66-II-CH

*Special Order - 8-week manufacturing lead time

Important Note: It is strongly recommended to use a lock body that has an internal status sensor with all audit locks (EL-0601-S, EL-0701, EL-0801). The resulting audit trail will then report "lock open time" as well as "lock close time". The EL-0601 does not have a status sensor and therefore the door close time will be reported at the same time as the door open time.

Data Sheet
